Quick Details

  • Condition: New
  • Type: Crawler Tractor
  • By wheel: Crawler
  • Usage: Farm Tractor
  • Drive Type: Other
  • Certificate: CE, CE
  • Brand Name: ANT
  • Model Number: BY800W
  • Place of Origin: Jiangsu, China (Mainland)
  • After-sales Service Provided: Overseas third-party support available
  • Load: 800kgs
  • Engine: 13HP
  • Transmission: Hydraulic pump stepless speed changes
  • Drum material: Plastic-spray
  • Dimension: 1740*900*1170mm
  • key words: crawler track truck

Packaging & Delivery

Packaging Details plywood or retort stand
Delivery Time within 30-60 working days



Product Description

BY800W hydraulic pumps palm oil harvester with CE from China mainland



Features

1.Unique design with humanization.

2.The main parts imported from USA with global warranty.

3.Multi-functional machine with a variety of optional accessonries





Detailed Description

1.Maximum loading weight is 800kgs.

2.Easy and comfortable operation due to the intuitive controls.

3.Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.

4.Easy climbing and stable crossing the obstacles.

5.Spot turning ,mini slipping.



MODELBY800W
Engine13hp 4stroke gasoline or diesel
Operative weight800kgs(1762lbs)
Max travel speed0-4.8km/h(0-3.0mph)
Transmission
Hydraulic pump2*variable displ.
Flow2*32.4Vmin(2*8.5gpm)
Hydraulic motors2*orbital
Brake parkingMechanical
Hydraulic system
Hydraulic pumppiston pump
Flow1*13.5Vmin(1*3.5gpm)
Hi-flow1*22Vmin(1*3.5gpm)
Max pressure150bar(2180psi)
Main valve2-3way
Cooled systemair-cooled
Skip tipping systemHydraulic
Tracks
Standard track width180mm(7.1in)
Rocking rollersYes
Track tensioningYes
Loading capacity
20GP6pcs
40GP13pcs

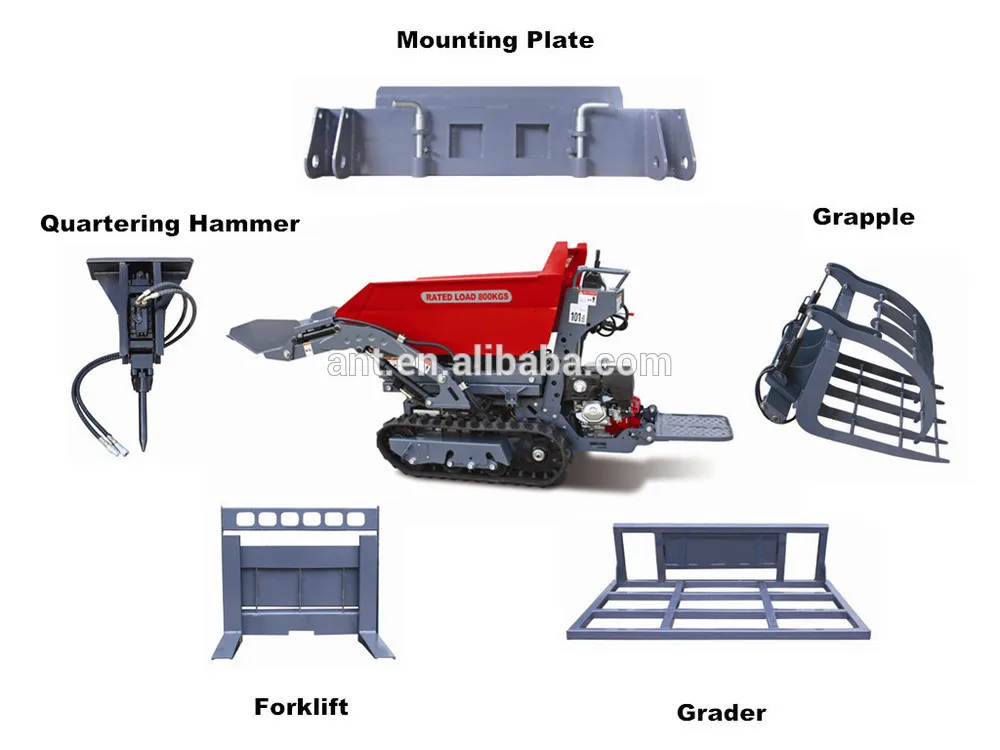

Accessory of  crawler track truck





Other types

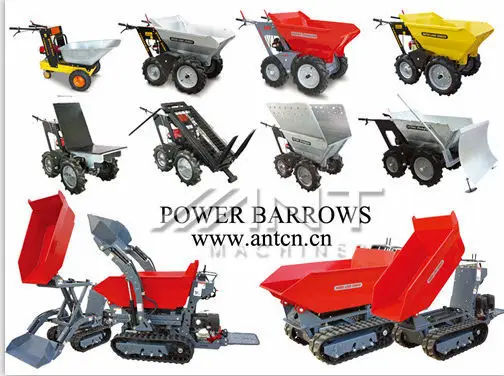

 Other types of Power Barrow

Model

Weight

Dimension

Engine

Loading weight

BY150

86kg

1720*960*670mm

4HP gas engine

150kg

BY250

121kg

1700*890*1050mm

Honda GXV160 5.5HP

250kg

BY250S

121kg

1700*890*1050mm

Honda GXV160 5.5HP

250kg

BY250X(self-unloading)

121kg

1700*890*1050mm

Honda GXV160 5.5HP

250kg

BY300

131kg

1700*890*1050mm

Honda GXV160 5.5HP

300kg

BY300S

131kg

1700*890*1050mm

Honda GXV160 5.5HP

300kg

BY300X(self-unloading)

131kg

1700*890*1050mm

Honda GXV160 5.5HP

300kg

BY300C

175kg

1600*740*820mm

B&S 5.5HP

300kg

BY800

650kg

2170*900*1650mm

Honda GX390 13HP

800kg

BY800S

625kg

2170*900*1170mm

Honda GX390 13HP

800kg

BY800W

600kg

1740*900*1170mm

Honda GX390 13HP

800kg

BY1000(three sides unload)

600kg

2170*900*1550mm

Honda GX390 13HP

1000kg

BY1000M

800kg

2300*900*1470mm

Honda GX390 13HP

1000kg




Certifications





Packaging & Shipping



Exhibition & show

 We attend Bauma China,  Canton Fair and twicw abroad exhibition every year.





Company Information







FAQ



*Q:What's your MOQ of this term?

  A:1 unit



*Q:Could you stick customer's brand on the products?

  A:Of course,we welcome the OEM orders.



*Q:How long is your warranty?

 A:6 months after use or 1 year after leave factory.



*Q:What's your packing?

 A:Solid carton,steel frame with carton cover or wooden case



*Q:What's your payment method?

 A:T/T 30% deposit,the balance against the copy of B/L Or L/C at sight



*Q:What's your delivery time?

 A:Delivery timely about 15-20 days after receiving the deposit
